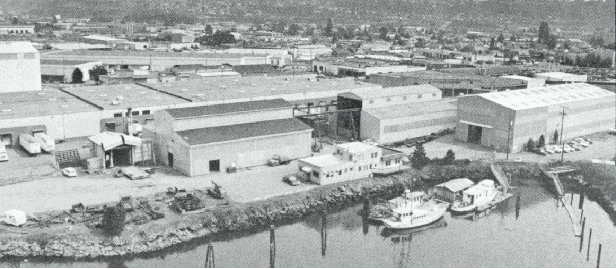

| Shop Facilities |
65,000 square feet under roof. 4.5 acres total. |
| Lifting Capacity |
Up to 45 tons |
| Welding |
FCAW, SMAW, SAW, GTAW |
| Stress Relieving |
Two large ovens. Sizes up to 15’W x 14’H x 34’L |
| Forming & Flanging |
- Heads – dished only, flanged and dished, flanged only
- Expansion joints – flanged and flued
- Flanging capacity to 11′ diameter and 8″ knuckle
|
| Press Brake |
Capacity to 500 tons by 14′ wide (10′ between the posts) |
| Forming Presses |
- 100 ton Farquar hydraulic “C” press with side arm
- 350 ton Farquar hydraulic “C” press
- 500 ton Southwark hydraulic “C” press with side arm
|
| Plate Rolls |
Five plate rolls with capacities varying up to 2-1/2″ thick and up to 12 feet wide |
| Angle Rolls |
Two angle rolls to L5 x 5 x 1/2 capacity, will form angle, flat bar on edge, trees, channel & pipe |
| Flame Cutting |
CNC, 10′ x 40′ (cuts up to 10″ thick mild steel) |
| Plasma Cutting |
Pak 44 thermal arc plasma torch (cuts up to 2-1/4″ thick stainless steel) |
| Shearing |
Steelweld shear 3/8″ x 10′ and 1/2″ x 5′ |
| Drilling |
Two radial arm drill presses with a 6′ arm and a 3′ arm |
| Pipe & Tube Mending |
1/4″ through 10″ diameter, .065 wall through schedule 160 |
| Transportation |
Truck, barge & rail |
| Codes & Standards |
ASME “U”, “U2”, “S”, “H” & “PP” stamps; National Board “R” stamp. API 650 & 620; TEMA; ABS; AWWA; UL 142; AISC; DNV (Det Norske Veritas) |
