Heat Exchangers

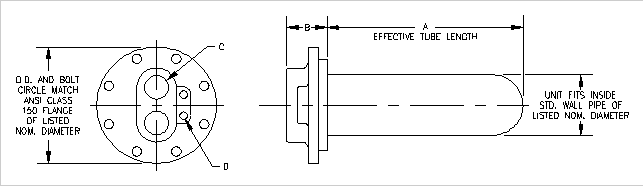

Model
Number
Heating
Surface (Ft²)
Nom. Dia.
(Inches)
A
(Inches)
B
(Inches)
C
(NPT)
D
(NPT)
Weight
(Lbs)
SBT-4-18 2.3 4 18 3-1/4 1-1/4 1/4 35
SBT-4-24 3.1 4 24 3-1/4 1-1/4 1/4 36
SBT-4-30 3.9 4 30 3-1/4 1-1/4 1/4 37
SBT-4-36 4.7 4 36 3-1/4 1-1/4 1/4 39
SBT-4-48 6.2 4 48 3-1/4 1-1/4 1/4 42
SBT-4-60 7.8 4 60 3-1/4 1-1/4 1/4 45

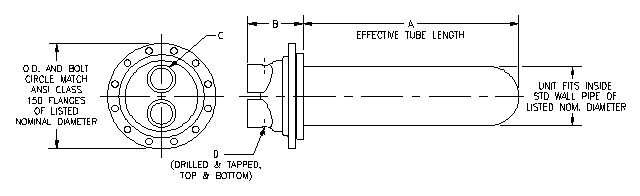

Model
Number
Heating
Surface (Ft²)
Nom. Dia.
(Inches)
A
(Inches)
B
(Inches)
C
(NPT)
D
(NPT)
Weight
(Lbs)
SBT-6-18 6.9 6 18 3-3/4 2 1/2 60
SBT-6-24 9.4 6 24 3-3/4 2 1/2 65
SBT-6-30 12.0 6 30 3-3/4 2 1/2 70
SBT-6-36 14.5 6 36 3-3/4 2 1/2 74
SBT-6-48 19.6 6 48 3-3/4 2 1/2 84
SBT-6-60 24.7 6 60 3-3/4 2 1/2 93
SBT-6-72 29.8 6 72 3-3/4 2 1/2 103
