SEATTLE - HPFWB SERIES
FOUR-PASS WET-BACK FIRETUBE
HIGH-PRESSURE STEAM BOILERS

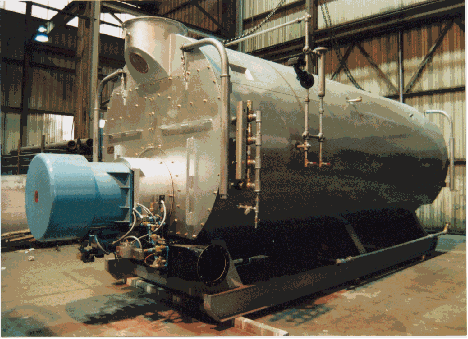

Model HPFWB-2750 Shown
FEATURES
  • Highest Efficiency
  • Large Furnace for Superior Heat Release Rates
  • Low Nox and Low Excess Air Burners Available
  • Tube Holes Grooved to Prevent Leakage and Extend Tube Life
  • Available Fuels - Natural Gas, Diesel, Heavy Oils, Waste Oils, Fish Oil
  • Conservatively Rated at 5.5 Sq. Ft. Heating Surface per Boiler Horsepower
Model * HPFWB
550		 HPFWB
1100		 HPFWB
1650		 HPFWB
2200		 HPFWB
2750		 HPFWB
3300
Output, Lbs/hr 3,450 6,900 10,350 13,800 17,250 20,700
Rating, H.P. 100 200 300 400 500 600
Length (A) 14' 1" 19' 11" 20' 1" 21' 2" 24' 0" 24' 4"
Width (B) 5' 10" 6' 4" 7' 4" 8' 0" 8' 2" 8' 10"
Height (C) 7' 8" 8' 2" 9' 2" 10' 0" 10' 2" 10' 10"
Weight Lbs. ** 12,000 19,900 27,950 34,500 40,250 48,000
Bare Boiler, 150 Lb. $ $ $ $ $ $
w/natural gas burner $ $ $ $ $ $
w/light oil burner $ $ $ $ $ $
w/natural gas/light oil burner $ $ $ $ $ $
*Standard sizes shown.  Other sizes available.
**Approximate weight varies with working pressure and combustion equipment.
