| EQUIPMENT/FACILITY | DESCRIPTION | ||

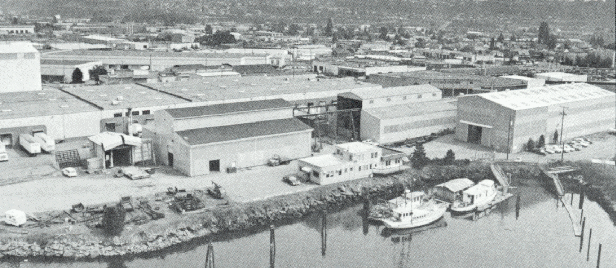

| Shop Facilities | 65,000 square feet under roof 4.5 acres total |
||
| Lifting Capacity | Up to 45 tons | ||
| Welding | FCAW, SMAW, SAW, GTAW | ||
| Stress Relieving | Two large ovens - sizes up to 15'W x 14'H x 34'L | ||
| Forming & Flanging | Heads - dished only, flanged
and dished, flanged only Expansion joints - flanged and flued Flanging capacity to 11' diameter and 8" knuckle |
||
| Press Brake | Capacity to 500 tons by 14' wide (10' between the posts) | ||
| Forming Presses | 100 ton Farquar hydraulic
"C" press with side arm 350 ton Farquar hydraulic "C" press 500 ton Southwark hydraulic "C" press with side arm |
||
| Plate Rolls | Five plate rolls with capacities varying up to 2-1/2" thick and up to 12 feet wide | ||
| Angle Rolls | Two angle rolls to L5 x 5 x 1/2 capacity, will form angle, flat bar on edge, trees, channel & pipe | ||
| Flame Cutting | CNC, 10' x 40' (cuts up to 10" thick mild steel) | ||
| Plasma Cutting | Pak 44 thermal arc plasma torch (cuts up to 2-1/4" thick stainless steel) | ||
| Shearing | Steelweld shear 3/8" x 10' and 1/2" x 5' | ||
| Drilling | Two radial arm drill presses with a 6' arm and a 3' arm | ||
| Pipe & Tube Bending | 1/4" through 10" diameter, .065 wall through schedule 160 | ||
| Transportation | Truck, barge & rail | ||
| Codes & Standards | ASME "U", "U2", "S", "H" & "PP" stamps; National Board "R" stamp. API 650 & 620; TEMA; ABS; AWWA; UL 142; AISC; DNV (Det Norske Veritas) | ||
